Posts Tagged shell

Remove DOS carriage return

Posted by smoreau in Linux, Tricks on 26 Sep 2012

After writing a shell script on Windows and trying to execute it on Linux, I got the following error message:

/bin/sh^M: bad interpreter: No such file or directory

The problem is obviously because the return line character on Windows and Linux are different. But how to fix it in order to execute it on Linux?
I firstly tried to open it, copy the content of the file and paste it in a new file using only Linux command line, but it didn’t work. 🙁

However, I found the following thread which fixed the problem:
http://www.reachdba.com/showthread.php?335-bin-sh-M-bad-interpreter-No-such-file-or-directory-apps11i-Instalation

Here is what you need to do:

  1. Open your file using vi
  2. Write the command :set fileformat=unix
  3. Save the file using :wq

The file should now run on Linux. 🙂

, , , , , , ,

1 Comment

CP2102 on DNS-323

Posted by smoreau in Linux on 09 Aug 2012

In one of my personal projects, I needed to connect and use a USB to RS232 (Serial) converter on my D-Link DNS-323. Weird requirements, I know. Anyway… 😐

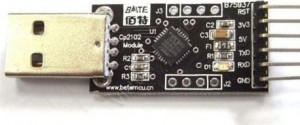

Plenty of these converters exist out there, but I choose to go for a CP2102:

Innocently, I first tried to compile the code source of this module which can be found on the following page:
http://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

After a few painful and unsuccessful tries, I decided to look around for the already-compiled module. 😉
While wondering why I didn’t think of that before, I used the instructions below to install the required modules on my NAS:

cd /mnt/HD_a2/ffp/lib/
mkdir modules
mkdir modules/2.6.12.6-arm1
cd modules/2.6.12.6-arm1
wget http://dev.skcserver.de/dns323/modules_v1.03/kernel/drivers/usb/serial/usbserial.ko
wget http://dev.skcserver.de/dns323/modules_v1.03/kernel/drivers/usb/serial/cp2101.ko
chmod 755 usbserial.ko
chmod 755 cp2101.ko

Once the modules are installed, the next step is to initialize them.
I wrote the following script for this purpose so you can execute it anytime you need it:

#!/bin/sh

insmod /ffp/lib/modules/2.6.12.6-arm1/usbserial.ko
insmod /ffp/lib/modules/2.6.12.6-arm1/cp2101.ko
mknod /dev/ttyUSB0 c 188 0
chmod 0666 /dev/ttyUSB0

At this point in time, you should have your module initialized on your D-Link DNS-323.
You can check the kernel ring buffer using the dmesg command to verify it loaded properly.
This is a snapshot of what I have in my kernel ring buffer after I ran the script above:

usbcore: registered new driver usbserial
drivers/usb/serial/usb-serial.c: USB Serial support registered for Generic
usbcore: registered new driver usbserial_generic
drivers/usb/serial/usb-serial.c: USB Serial Driver core v2.0
drivers/usb/serial/usb-serial.c: USB Serial support registered for CP2101
CP2101 1-1:1.0: CP2101 converter detected
usb 1-1: reset full speed USB device using ehci_platform and address 5
usb 1-1: CP2101 converter now attached to ttyUSB0
usbcore: registered new driver CP2101
drivers/usb/serial/cp2101.c: Silicon Labs CP2101/CP2102 RS232 serial adaptor driver v0.04

Finally, you can test the communication with your USB to RS232 converter by connecting a LED between the RXD and 3V outputs and running the following script:

#!/bin/sh

while [ true ]
do
echo "hello world!!!" > /dev/ttyUSB0
echo "sent"
sleep 1
done

If you see the LED blinking, it means you succeed! 😀

, , , , , , , , ,

3 Comments

Redirect traffic to a specific network

Posted by smoreau in Linux, Tricks on 06 May 2012

This is a little trick which can be useful in some very specific case.

For example, you could have a machine with two network cards. One of the network is behind a proxy and the other one is connected directly to the internet.
You might want to forward all the traffic for google.com to the network which doesn’t have a proxy.

To do this, I am using the command route:

route add <hostname> <target network>

For example:

route add google.com 192.168.101.1

Note that this command is available on both Linux and Mac.

, , , , ,

1 Comment

Install s3fs on Amazon Clouds

Posted by smoreau in Linux on 03 Apr 2012

s3fs is a FUSE filesystem that allows you to mount an Amazon S3 bucket as a local filesystem. It stores files natively and transparently in S3 (i.e., you can use other programs to access the same files).

The following instructions detail the steps to install the program s3fs on an Amazon EC2 running Debian 5.0.5.

  1. Install libfuse
    First, you need to install the package libfuse manually as the one provided via apt-get is too old (s3fs needs a version greater than or equal to 2.8.4).

    wget http://downloads.sourceforge.net/project/fuse/fuse-2.X/2.8.7/fuse-2.8.7.tar.gz
tar xzf fuse-2.8.7.tar.gz
cd fuse-2.8.7
./configure --prefix=/usr
make install
  2. Install libxml
    You can simply install the package provided by apt-get:

    apt-get install libxml2-dev
  3. Upgrade mount
    Because of a problem between fuse and mount, you need to upgrade the version of mount:

    wget http://www.kernel.org/pub/linux/utils/util-linux/v2.21/util-linux-2.21-rc1.tar.gz
tar xzf util-linux-2.21-rc1.tar.gz
./configure --prefix=/usr --without-ncurses
make install

    For more information about this issue, please go to the following page: http://code.google.com/p/s3fs/issues/detail?id=228

  4. Install s3fs
    You can now install s3fs using the following commands:

    wget http://s3fs.googlecode.com/files/s3fs-1.61.tar.gz
tar xvzf s3fs-1.61.tar.gz
cd s3fs-1.61/
./configure --prefix=/usr
make install

Note that I wanted to use s3fs to create incremental snapshot-style backups with rsync. Unfortunately, as mentioned on the following page, it didn’t work because s3fs doesn’t support hard links: http://code.google.com/p/s3fs/issues/detail?id=46

, , , , , , , , , , ,

No Comments

S3 command failed if the time is not synced

Posted by smoreau in Linux on 06 Dec 2011

This is already the second post about the s3sync ruby program. The first article was focused on monitoring s3sync with Zabbix.

I will talk on this one about an error I got when running the S3 synchronisation:

S3 command failed:
list_bucket prefix /data max-keys 200 delimiter /
With result 403 Forbidden
S3 ERROR: #
s3sync.rb:290:in `+': can't convert nil into Array (TypeError)
	from s3sync.rb:290:in `s3TreeRecurse'
	from s3sync.rb:346:in `main'
	from ./thread_generator.rb:79:in `call'
	from ./thread_generator.rb:79:in `initialize'
	from ./thread_generator.rb:76:in `new'
	from ./thread_generator.rb:76:in `initialize'
	from s3sync.rb:267:in `new'
	from s3sync.rb:267:in `main'
	from s3sync.rb:735

As you can see, this error is not very human-friendly! 😮 The only thing we know is that the S3 command failed because of the error can't convert nil into Array. It looks to me like an internal error within s3sync…

But after some investigation, it appears it is simply because the system date on the server is not correct. I cannot tell you how much time I spent on this one!  😯

Anyway, if you are doing automatic backups as describe on John Eberly’s blog, you need to add the following code at the top of your upload.sh script:

# update the system date
/usr/sbin/ntpdate 3.uk.pool.ntp.org 2.uk.pool.ntp.org 1.uk.pool.ntp.org 0.uk.pool.ntp.org

NB: please find below the command lines I use to install ntpdate on a Debian server:

apt-get install ntpdate
dpkg-reconfigure tzdata

, , , , , , ,

2 Comments
